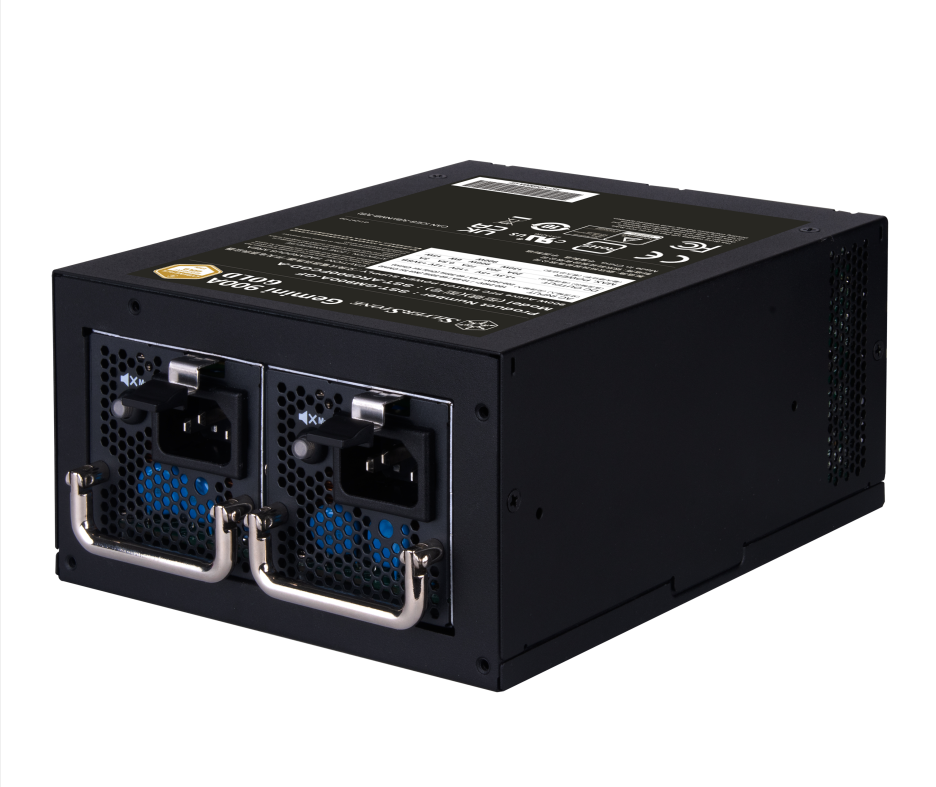

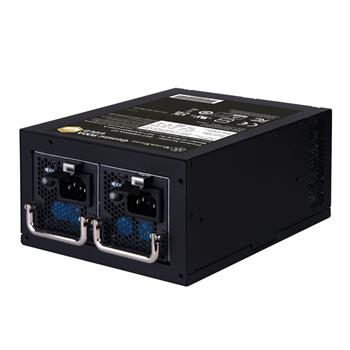

SilverStone SST-GM900A-GF

Popis produktu:

SILVERSTONE GEMINI 900A GOLD
[CYBENETICS GOLD 900W ATX REDUNDANT POWER SUPPLY]


KEY FEATURES

- 900W+900W 24hour and well working performance at 50°C fully continuous power output
- ATX form factor
- Cybenetics Gold Certification
- 1+1 ATX redundant configuration
- All Japanese electrolytic capacitors
- Hot swappable design
- Convenient pull-out handle bars


PRODUCT SPECIFICATIONS

- Product No.: SST-GM900A-GF
- Model (safety certification): SST-AR0900FCGD-A
- Color: Black
- Max. DC Output: 900W
- Power density: 918W per liter

Load Range:
Output +3.3V +5V +12V +5VSB -12V
Max.(Amps) 20A 20A 75A 3.0A 0.5A
Min.(Amps) 1A 1A 1A 0.1A 0A
Range (%) ±5% ±5% ±5% ±5% ±10%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 50mV 50mV 120mV 50mV 200mV

- Combined +3.3V & +5V: 130W
- Combined +12V: 900W
- Input Voltage: 90 ~ 264 Vrms
- Input Frequency Range: 47Hz ~ 63Hz
- PFC: Active PFC (PF>0.9 at full load)
- Efficiency: ?89% & <91% overall efficiency
- MTBF: 100,000 hours
- Operating temperature: 0°C ~ 50°C

- Protection:
- Over Current Protection
- Over Power Protection
- Over Voltage Protection
- Short Circuit Protection
- Under Voltage Protection
- Over Temperature Protection

- Connectors:
- 1 x 24 / 20-Pin motherboard connector
- 2 x 8 / 4-Pin EPS / ATX 12V connectors
- 4 x 8 / 6-Pin PCIe connectors
- 3 x SATA connectors
- 9 x 4-Pin Peripheral connectors
- 1 x 9-Pin USB connector

- Cooling System: 40mm DC fans
- Noise Level: 72 dBA maximum

- LED indicator:
- Modular Status indicator
- No AC power to all PSU OFF
- AC present / only standby output on Green blinking
- Power supply DC output ON and OK Solid green
- Power supply failure Solid red

- Certification: Cybenetics Gold
- Form factor: 1+1 ATX redundant


- Dimensions:
- 150mm (W) x 86mm (H) x 201mm (D) (Housing with bracket, without handle)
- 150mm (W) x 86mm (H) x 190mm (D) (Housing without bracket)
- 140mm (W) x 40mm (H) x 175mm (D) (Module only without handle)
- Weight: 3.06 kg
