Produkt je vyřazen!




Produkt již není v naší nabídce.
Kontaktujte prosím, manažera produktu:

Tomáš Hort
hort@ittrade.cz

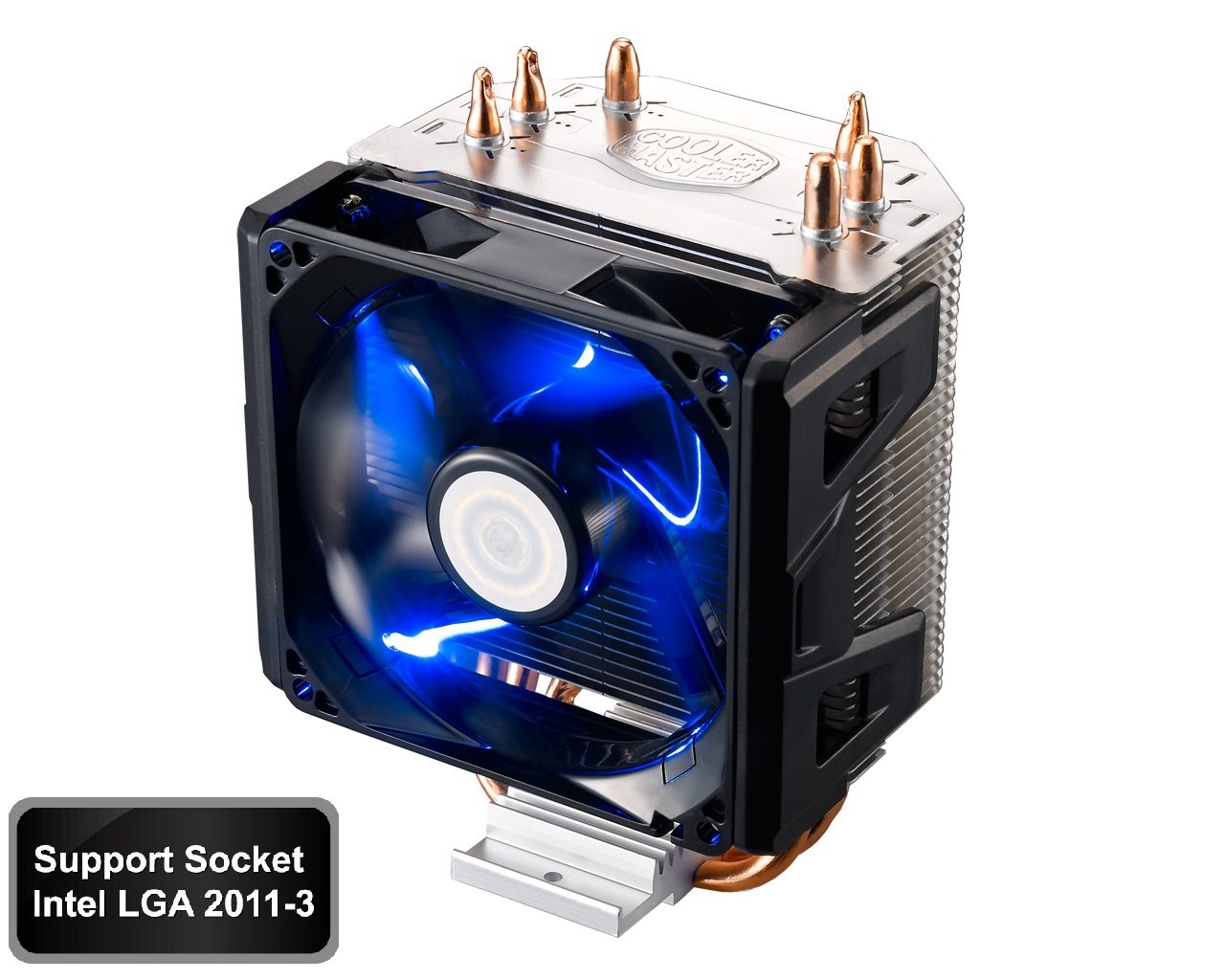

Cooler Master chladič CPU Hyper 103, univ. socket, 92mm PWM blue LED fan








Cooler Master chladič CPU Hyper 103, univ. socket, 92mm PWM blue LED fan

 Ukončeno












Výrobce
KódCM3006
Part No.RR-H103-22PB-R1
EAN4719512044193
Záruka24 měsíců
StatusUkončeno
Objednat
Hodnocení produktu

Hodnoceno 0x















Podrobnosti o produktu





Popis produktu:


Hyper 103

  • Cooler Master exclusive X-Vent and Air-Guide technology optimize the air flow toward heatpipes and ultimately reduce CPU temperature.
  • 3 direct Contact heatpipes with stylish aluminum fins to provide excellent heat dissipation.
  • 92mm wide range PWM blue LED fan, RPM can be fine tuned for maximum airflow or whisper quiet operation.
  • New tool-free mounting system for trouble-less installation.

Hyper 103

The Cooler Master Hyper 103 is an affordable mainstream heatsink, delivering great cooling performance on all modern platforms. The special fin design combined with Cooler Master’s exclusive X-Vent and Air-Guide technology optimizes air flow toward the heatpipes. The Hyper 103's 92mm PWM fan features a wide range for the fan speed and can be fine-tuned for maximum airflow or silent operation. The low profile tower heatsink is a great match for smaller systems.



Patented Air-Guide Technology

Funnel shaped aluminum fins and a series of perforated dimples help to guide the airflow towards the heatpipes, greatly reducing CPU temperature.

Cooler Master exclusive X-Vent

Positioned in a 45 degree angle and surrounding the heatpipe, each fin-blade features X-shaped vents that create areas of high and low air pressure, resulting in several controlled vortices. These small and chaotic turbulences produce strong gusts that reduce overall airflow but improves airflow where it matters the most – next to the heatpipes.

3 Direct Contact Heatpipes

The base is engineered to minimize CPU contact gaps and stylish aluminum fins provide excellent heat dissipation.

Wide-range 92mm PWM Fan

The Hyper 103’s 92mm PWM fan features a wide speed range and can be fine-tuned for maximum cooling performance or silent operation. The low profile tower heatsink is the perfect match for small systems.

Tool-free Mounting System

New tool-free mounting system ensures hassle-free installation. Universal retention brackets are compatible with latest Intel and AMD socket CPU.

Quick-snap fan bracket design

The friendly design makes the fan installation easier.





Model RR-H103-22PB-R1
CPU patice Intel® LGA 2011-3 / 2011 / 1366 / 1156 / 1155 / 1151 / 1150 / 775
AMD FM2+ / FM2 / FM1 / AM3+ / AM3 / AM2
Rozměry 108 x 89.5 x 138.5 mm (4.3 x 3.5 x 5.5 palců)
Rozměry 96 x 61 x 138.5 mm (3.8 x 2.4 x 5.5 palců)
Materiál 3 Heatpipes / hliníkové lamely
Váha 500 g / 1.1 lb
Heat Pipe průměr
Ø6mm
Ventilátor
92 x 92 x 25 mm (4.7 x 4.7 x 1 palců)
Rychlost ventilátoru
800~2,200 RPM (PWM) ± 10%
Proud vzduchu
15.7~43.1 CFM ± 10%
Tlak vzduchu
0.35~2.63 mm H2O ± 10%
Životnost 40,000 h
Hlučnost 17~30 dBA
Typ ložiska
Long life sleeve bearing
Konektor 4-Pin
Napětí 12 VDC
Proud 0.15A**
Spotřeba 1.8 W
Váha ventilátoru
80 g / 0.18 lb


Stránky o produktu:

http://www.coolermaster.com/cooling/cpu-air-cooler/hyper-103/
