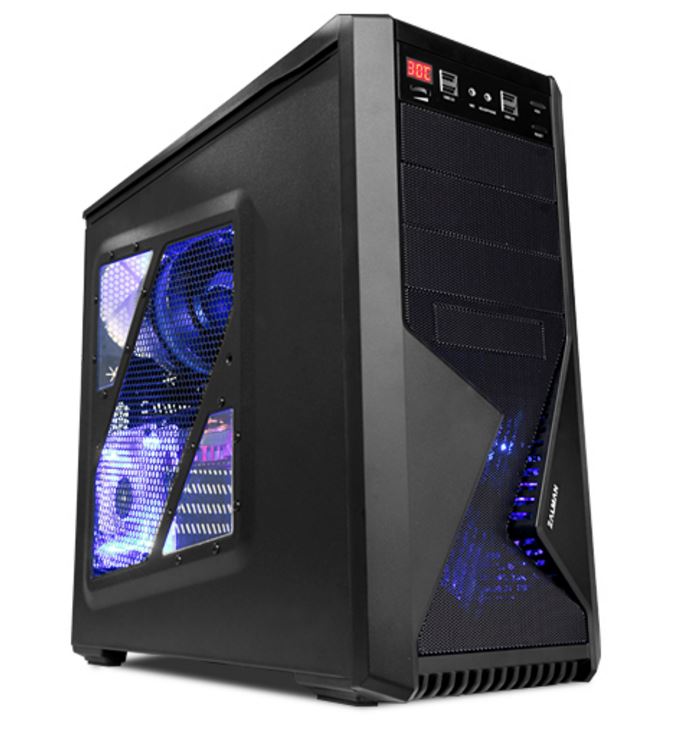

Počítačová skříň midi tower, pro ATX / micro ATX desky, externí - 3x 5.25" + 1x 3.5", interní - 5x 3.5"/2.5" + 1x 2.5", 4x USB 2.0 + 1x mic + 1x audio + displej, 4x ventilátor - přední/vrchní/boční LED + zadní součástí, průhledná bočnice, bez zdroje
Podrobnosti o produktu
Popis produktu:
Front
Mesh Cover for High Cooling Performance
The front mesh bay cover provides cool air into the
system while dust filters prevent dust from
entering.
Supports
up to 7 System Fans
Up to 7 system fans are installed to expel hot air
effectively from the case.
Supports
Bottom PSU Installation and Aperture for Cable
Management
Z9 Plus supports bottom PSU installation and
provides an aperture for cable management to make
better use of interior space.
Black
Interior Coating
The interior of chassis is coated black to provide a
sense of unity and elegant design.
Tool Free
HDD Installation with Anti-Vibration Rubber
The server-type Tool-Free HDD Mount Trays allow easy
HDD installation/removal and maintenance.
Spacious
Interior for Installing 290mm Card
The interior has been designed to be spacious for
easy installation and maintenance of various
components.
Front I/O
module for Easy Component Change
Front I/O module enables the location of DVD-ROM and
other components to be changed easily according to
user preference.
2-Channel
Fan Controller and Temperature Display
2-Channel Fan controller for adjusting the system
temperature and external LED temperature display are
provided. By controlling noise and interior
temperature with the fan speed, system can be
operated at the most optimal condition.
Side
Acryl Tuning
Side Acryl Tuning is provided for users to view the
interior of gaming system.
Supports
4 USB 2.0
Front I/O module provides 4 USB 2.0 ports for user
convenience and expandability.
Supports
Front, Top, Side 120mm Blue LED fan and Rear
120mm Fan
Four 120mm fans deliver maximum cooling, and 3 Blue
LED fan emphasizes cool aesthetics.
※ For Z9, 1 front 120mm Blue LED and 1 rear 120mm
White Impeller fan are provided.
Front and
Bottom Dust Filters
Dust filters in the front and bottom mesh covers
prevent dust from entering the system and keep the
internal components dust-free.
Supports
Solid State Drive (SSD)
Space is provided on the back of M/B plate for
installing 2.5" HDD/SSD.
Separate
Apertures for Convenient CPU Cooler Installation
Separate apertures for CPU cooler are provided for
convenient CPU cooler installation without having to
remove motherboard from case.
3IN1
Adapter Tray Provided
3IN1 Adapter Tray is provided for installing FDD /
3.5" HDD / 2.5" HDD/SSD.
Tube
Apertures for Liquid Cooling Systems
Tube apertures are provided at the rear of the case
for convenient water cooling set-up and maintenance.
- Main Unit
- Stand-off
- A Bolts (BH 6-32*6) [PSU/PCI Slot
Installation]
- B Bolts (PWH M3*5) [M/B, FDD, SSD
Installation]
- C Bolts (M3*6) [5.25" Bay ODD
Installation]
- D Bolts (#6-32*4) [3.5" Bay HDD
Installation]
- E-Bolts (#6-32*6) [3.5" HDD
Installation]
- HDD Anti Vibration Damper [3.5"
Bay HDD Installation]
- Cable Ties
- CPU 12V Extension Cable
- User`s Manual
Enclosure
Type
ATX
Mid Tower
Dimensions
207(W)
x 464(H) x 504(D)mm
Weight
7.2kg
Material
Plastic,
Steel
Motherboard
Compatibility
Standard
ATX / m-ATX
Power
Supply Compatibility
Standard
ATX / ATX12V
VGA
Compatibility
Full
Size (290mm)
Expansion
Slot
7
Drive Bay
External 5.25"
3
Internal 3.5"
5
External 3.5"
1
Internal 2.5"
1
Cooling
Component
Front
120
㎜ /140㎜ fan x 1 (120㎜ Blue LED fan x 1 standard)
Top
120
㎜ /140㎜ fan x 2 (120㎜ Blue LED fan x 1 standard)
Bottom
120
㎜ /140㎜ fan x 1 (option)
Rear (L)
120
㎜ fan x 1 (standard)
Side
120
㎜ fan x 2 (120㎜ Blue LED fan x 1 standard)
Front
I/O Ports
Mic
x 1, Headphones x 1, USB 2.0 x 4, Fan Controller,
Temperature Display
Podrobnosti o produktu
Popis produktu:
※ For Z9, 1 front 120mm Blue LED and 1 rear 120mm White Impeller fan are provided.
- Stand-off
- A Bolts (BH 6-32*6) [PSU/PCI Slot Installation]
- B Bolts (PWH M3*5) [M/B, FDD, SSD Installation]
- C Bolts (M3*6) [5.25" Bay ODD Installation]
- D Bolts (#6-32*4) [3.5" Bay HDD Installation]
- E-Bolts (#6-32*6) [3.5" HDD Installation]
- HDD Anti Vibration Damper [3.5" Bay HDD Installation]
- Cable Ties
- CPU 12V Extension Cable
- User`s Manual
Component
Stránky o produktu:
http://www.zalman.com/contents/products/view.html?no=362
